Obter um orçamento imediato
  • Aço inoxidável

    Material

  • 1/8"-2"

    Tamanho

  • BS21/ANSI/ASME/DIN

    Linha

Acessórios para tubos

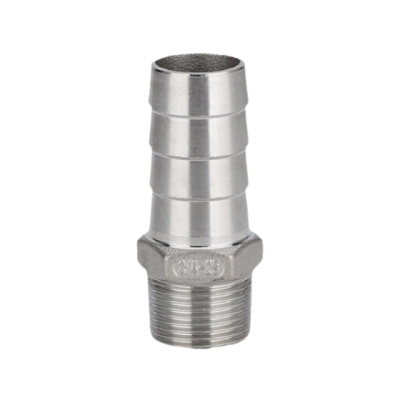

Pagoda Joint

The pagoda joint is a hose connection fitting with a pagoda-like structure. It is commonly used in liquid and gas delivery systems and has excellent stability and sealing.

  • Exquisite Craftsmanship
  • Sturdy and Beautiful
  • Wide Applicability
Obter um orçamento imediato
  • Personalizado OEM
  • Logística rápida e segura

Pagoda Joint

The pagoda joint is made of high-quality stainless steel/brass/nylon, with a variety of material options and sizes to meet the needs of different working environments, flow rates, and pressures. It is easy to install and can be easily connected and fixed to the hose through pipe clamps or clamps, without the need for complex tools to assist, which greatly improves the efficiency of installation and reduces the difficulty of installation.

In addition, the pagoda joint also has excellent corrosion resistance, pressure resistance and wear resistance, as well as excellent sealing, which can ensure that the transmission system will not leak during the transmission of the medium.

Caraterísticas

Multiple Size Options

The pagoda joints has a variety of sizes to choose from, from 1/8"-2", which can be adapted to a variety of pipe specifications to meet the needs of different systems and equipment.

High-Quality Raw Materials

The raw materials of the pagoda joint include high-quality stainless steel, brass, nylon and polypropylene. Different raw materials play a role in different working conditions, such as stainless steel is suitable for high-temperature and high-pressure environment.

Pressure-Resistant and Explosion-Proof

The pressure-resistant capacity of the pagoda joint is excellent, and it can stably transmit the medium in high-pressure environments such as hydraulic systems. It also has explosion-proof performance and is suitable for use in harsh working conditions.

Anti-Corrosion and Wear-Resistant

The pagoda joint has excellent corrosion resistance and can generally maintain stable performance in various corrosive environments and systems. It also has good wear resistance and can operate stably in the system for a long time.

Aplicações

Combustível e óleo

Os acoplamentos Camlock são indispensáveis na indústria dos combustíveis e do petróleo, proporcionando ligações fiáveis e à prova de fugas para a transferência de produtos petrolíferos. A sua capacidade de ligação/desligação rápida aumenta a segurança e a eficiência durante os processos de carga e descarga.

Agricultura

Alimentação e bebidas

Gás

Especificações

1/8"-2"

Especificações do produto

Código do produtoLT-35A
Tamanho1/8"-2"
TecnologiaCNC Precision Machining/Injection Molding
Propriedade físicaCommon Working Pressure can Reach 10-25 Bar, Good Wear Resistance
Material que podemos fazerStainless Steel/Brass/Nylon/Polypropylene
LinhaBS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B O203/2(PT), KS BO221/2(PT), etc.
Temperature-40℃（-40°F） to 200℃（392°F）
SuperfíciePolishing/Pickling Passivation/Nickel Plating/Chrome Plating
ModeloP-066
FormaIgual

Logística e certificações

CertificadoISO 9001:2015,IS014001:2015, CE, ROHS, KC, etc.
EmbalagemSaco de PVC para cada peça. Caixas de cartão com palete/palete exterior/caixas de madeira
PortoNingbo/Shanghai, China Ou outro porto a pedido.
AmostraOferecer amostras gratuitas e frete a cobrar
Detalhe da entregaDe acordo com as quantidades e especificações de cada encomendaUm stock completo para proporcionar entregas rápidas para pequenas encomendas.Os prazos normais de entrega são de 30 a 45 dias após a receção do depósito
Aplicações genéricasFuel & Oil, Agriculture, Food and Beverages, Gas
Obter um orçamento imediato

Apoio

Mais suporte

Guia de instalação

The pagoda joint is connected to the hose. Before installation, both need to be cleaned to prevent impurities from entering. Then, fix the hose to the pagoda joint according to the interface through a pipe clamp or a clamp to connect it tightly. If the connection method is a threaded connection, you need to tighten the thread with the help of a wrench to ensure sealing. It must be noted that you must not use excessive force to avoid damage to the thread and affect the sealing effect.

Manutenção pós-venda

FAQs

Looking for answers about the Pagoda Joint? Visit our FAQ section for detailed information and expert insights.

Contactar-nos
  • Can the pagoda joint be reused?
    Metal pagoda joints can be reused, but the sealing conditions need to be checked.
  • What industries and systems are pagoda joints mainly suitable for?
    Pagoda joints are widely used in hydraulic systems, irrigation systems, medical industries and other fields.
  • Can the pagoda joint be used in the food industry?
    As long as the material of the pagoda joint is food grade, it can function normally in the food industry.
  • Are pagoda joints suitable for high-temperature environments?
    Yes. But not all pagoda joints are suitable for high-temperature environments. You need to choose the right pagoda joint according to different temperature environments.
  • Can you provide customized special sizes or materials?
    Of course, we can provide customized services for you. You just need to send us your requirements and we will quickly provide you with the most suitable solution.
