PROCAMLOCK

Acciaio inox
Materiale
Φ10 Φ12 Φ13 Φ15 Φ16 Φ19 Φ20 Φ25
Dimensione
BS21/ANSI/ASME/DIN
Il filo

Raccordi per tubi in metallo

Cross Hose Joint

The Cross Hose Joint is a precision-engineered pipe fitting designed for high-pressure fluid applications, offering exceptional durability and corrosion resistance.

High Strength

Wide Temperature Range

Corrosion Resistant

Richiedi un preventivo immediato

OEM personalizzato
Logistica veloce e sicura

Descrizione
Applicazione
Specifiche
Supporto
Prodotti correlati

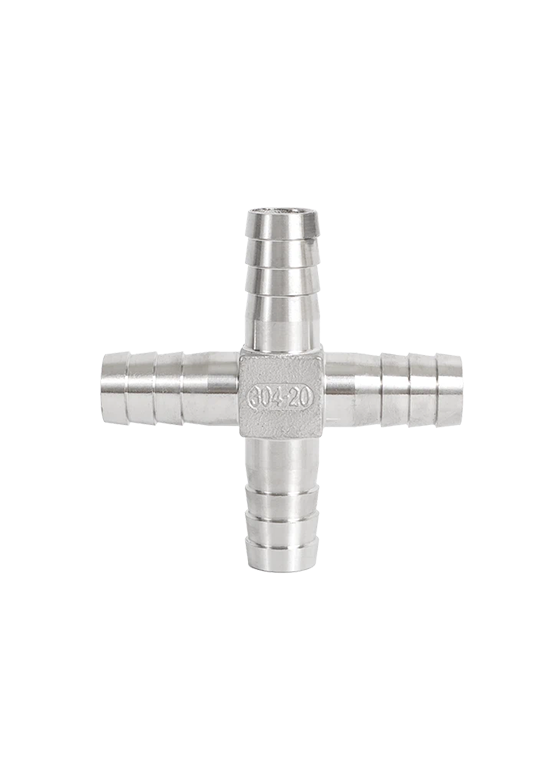

Cross Hose Joint

The Cross Hose Joint (LT-13G) is expertly crafted using Silica Sol Precision Casting Technology, ensuring superior quality and performance. Designed for versatility, it fits a range of sizes (Φ10 to Φ25) and supports diverse threading standards including BS21, ANSI, and DIN, making it suitable for various applications such as fuel and oil distribution, agriculture, and fire protection systems. Its robust construction from stainless steel 304 or 316 provides outstanding corrosion resistance, enabling reliable operation in high-pressure and high-temperature environments.

Caratteristiche

High Strength

With a tensile strength of 485Mpa and yield strength over 205Mpa, this joint is engineered to withstand demanding conditions.

Corrosion Resistant

Made from high-grade stainless steel, the joint resists rust and chemical damage, ensuring longevity in harsh environments.

Easy to Install

Designed for user-friendly installation, it fits standard threads easily, reducing downtime and maintenance costs.

Applicazioni versatili

Ideal for various systems including hydraulic, high-temperature, and corrosive medium delivery systems, ensuring broad usability.

Applicazioni

Carburante e olio

I giunti Camlock sono indispensabili nell'industria petrolifera e dei carburanti, in quanto forniscono connessioni affidabili e a prova di perdite per il trasferimento di prodotti petroliferi. La loro capacità di collegamento/scollegamento rapido aumenta la sicurezza e l'efficienza durante i processi di carico e scarico.

Agricoltura

Cibo e bevande

Gas

Specifiche

Φ10Φ12Φ13Φ15Φ16Φ19Φ20Φ25

Specifiche del prodotto

Codice prodotto	LT-13G
Dimensione	Φ10Φ12Φ13Φ15Φ16Φ19Φ20Φ25
Tecnologia	Tecnologia di colata di precisione Silica Sol
Proprietà fisica	Resistenza alla trazione: 485Mpa, resistenza allo snervamento > 205Mpa, allungamento: 35%
Materiale che possiamo fare	Stainless steel 304/316/CF8/CF8M/1.4308/1.4463
Il filo	BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999 (R/RP), JIS B O203/2 (PT), KS BO221/2 (PT), ecc.
Temperatura	-76°F to +572°F（-60℃ to +300°C）
Superficie	Decapaggio e pelatura
Modello	P-056
Forma	Pari

Logistica e certificazioni

Certificato	ISO 9001:2015, IS014001:2015, CE, ROHS, KC, ecc.
Pacchetto	Sacchetto in PVC per ogni pezzo.Cartoni con pallet/out pallet/casse di legno
Porto	Ningbo/Shanghai, Cina O altro porto su richiesta.
Campione	Offrire campioni gratuiti e trasporto a domicilio
Dettaglio della consegna	Secondo le quantità e le specifiche di ogni ordineUn magazzino completo per fornire consegne veloci per piccoli ordini.Tempi di consegna normali è da 30 a 45 giorni dopo aver ricevuto il deposito
Applicazioni generiche	Fuel & Oil, Agriculture, Food and Beverages, Gas

Richiedi un preventivo immediato

Supporto

Più supporto

Guida all'installazione

Before installation, ensure that the surfaces of the pipes are clean and free of debris. Align the joint correctly with the corresponding threads. Use appropriate tools to tighten without over-torquing, as this may damage the joint. For optimal performance, check for leaks after installation and maintain regular inspections to ensure integrity under pressure.

Manutenzione post-vendita

Domande frequenti

Looking for answers about Cross Hose Joint? Visit our FAQ section for detailed information and expert insights.

Contatto

What is the maximum temperature for this joint?

The Cross Hose Joint operates effectively in temperatures ranging from -76°F to +572°F (-60°C to +300°C), making it suitable for diverse applications.
What materials are available for this product?

This joint is available in stainless steel 304 and 316, as well as materials like CF8 and CF8M, ensuring a solution for various corrosive environments.
Can I use this joint for gas applications?

Yes, the Cross Hose Joint is suitable for gas applications, as well as for fuel, oil, and high-pressure fluid systems, ensuring versatility.
Are samples available before purchase?

Yes, we offer free samples of the Cross Hose Joint. Please note that freight will be collected, allowing you to evaluate the product before making a larger order.
What certifications does this product have?

The Cross Hose Joint is certified under ISO 9001:2015, ISO 14001:2015, CE, ROHS, and KC, ensuring compliance with international quality and safety standards.
